Product Details
Place of Origin: Guangdong, China
Brand Name: Zhongxin
Certification: CE, ROHS, FCC, CCC
Model Number: ZX-270
Payment & Shipping Terms
Minimum Order Quantity: 1 pieces
Price: $850-1350/pieces
Packaging Details: Packed in carton+wooden boxes
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 6000 Piece/Pieces per Month
Panel Size: |
70inch |
Max Resolution: |
3840x2160 |
Panel Type: |
TFT LCD Screen & LED Light |
Panel Brand (Option): |
LG/Samsung/Innolux/AUO/BOE Etc. |
Aspect Ratio: |
16:9(W:H) |
Active Area(W*H Mm): |
1549.44*871.56 Mm |
Operating System: |
Android Window Linux |
CPU: |
I3/i5/i7/rk3288/rk3399 |
ROM: |
2GB,4GB |
Built-in Storage: |
8GB To 32GB FLASH/EMMC |
Touch Type: |
IR Multi Point Touch |
Avaliable Size: |
32" To 98inch |
Panel Size: |
70inch |
Max Resolution: |
3840x2160 |
Panel Type: |
TFT LCD Screen & LED Light |
Panel Brand (Option): |
LG/Samsung/Innolux/AUO/BOE Etc. |
Aspect Ratio: |
16:9(W:H) |
Active Area(W*H Mm): |
1549.44*871.56 Mm |
Operating System: |
Android Window Linux |
CPU: |
I3/i5/i7/rk3288/rk3399 |
ROM: |
2GB,4GB |
Built-in Storage: |
8GB To 32GB FLASH/EMMC |
Touch Type: |
IR Multi Point Touch |
Avaliable Size: |
32" To 98inch |
Features (Wall-mounted LCD digital signage ):
1. High-resolution displays: 3840x2160, ensuring that content is clear and easily readable from a distance.
2. Remote Content Management, Digital signage systems come with free software that allows users to remotely update and manage content.
3. Scheduled Content Playback: Users can schedule content to play at specific times or dates, allowing for targeted messaging and advertising based on time of day or events.
4. Interactive touch screen optional,allowing users to manage directly with the content being displayed.
5. Support Customizable design, software
6. Remote Monitoring and Diagnostics: Some systems offer remote monitoring and diagnostics, allowing users to monitor the health of their signage displays and receive alerts if any issues arise.
8. Multi-Zone Layouts: Digital signage displays support to divided into multiple zones, allowing users to display different types of content simultaneously, such as advertisements, news updates, and event schedules.
Application:
Wll-mounted LCD digital signage offers a versatile and dynamic solution for displaying information and advertising in various indoor environments, including retail stores, restaurants, corporate offices, transportation hubs, and more.
| PANEL PARAMETER | ||

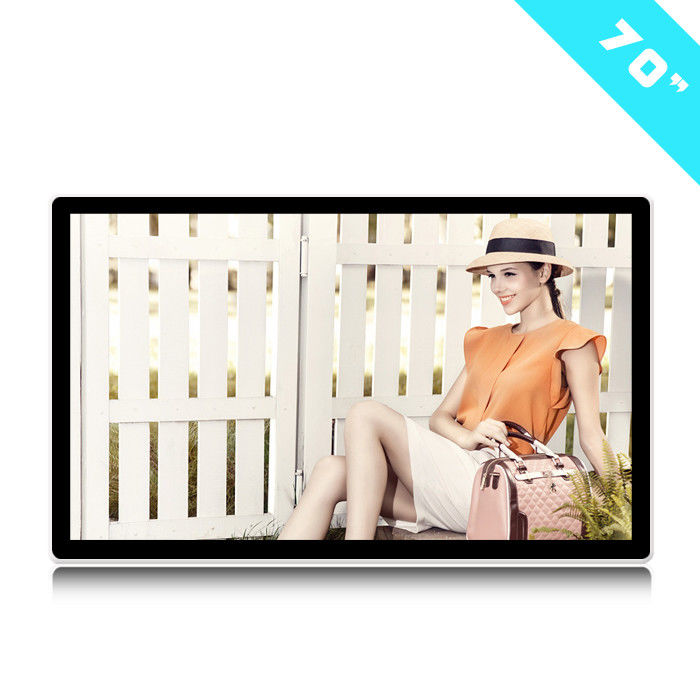

| Prodcut name | 70" wall mounted lcd advertising player | |
| Panel type | TFT LCD screen, Led back light | |
| Resolution(Default) | 3840*2160 16:9 | |
| Brightness | 500cd/m2 | |
| Display area(H/V) | 1549.44 x 871.56mm | |
| Dot pitch(H/V) | 0.269x0.807 mm | |
| Contrast ratio | 4000:1 | |
| Display color | 16:7M(8bit) | |
| View angle(H/V) | 178/178 | |
| Response time | 6ms | |
| Tempered glass | 3.0mm (For protectiving LCD) | |
| Touch Sensor | Non touch/IR touch screen 10 points | |
| Operation System | ||
| USB or SD card | USB or SD card | 8G |
| Support | USB/SD card, HDMI input, Update contect by USD or SD card | |
| Android OS 7.0 to 11 | CPU | Quad-core 1.8GHz |
| Memory | DDR3 2G to 8G | |
| Built-in Storage | 8G to 32G FLASH/EMMD | |
| Network support | WIFI/RJ45/Bluetooth (4G/5G option) | |
| Port support | LAN/TF/USB/HDMI output | |
| Windows OS 7/8/10 | CPU | I3/I5/I7 |
| Memory | 4G RAM, 128G SSD(up to 8-16G, 256G SSD) | |
| Network support | WIFI/RJ45/Bluetooth (4G option) | |
| Port support | LAN/USB/VGA and HDMI output/DC-IN, LIN-OUT, MIC-IN | |
| Support format | Video | MPGE1, MPGE2, MPEG4, ASP, WMV, AVI, H2.63, H.264, VC1, RV, etc. |
| Image | JPEG, BMP, TIFF, PNG, GIF | |
| Document | TXT, Word, PPT, Excel | |
| Audio | Wave, MP3, WMA, AAC | |
| Image resolution | Support 2160, 1080p, 720p, 480p, and multiple resolutions | |
| Technical Specification | ||
| Frame's material | Cold-Roll Steel Sheets(SPCC) | |
| Color | Black | |
| Menu Language | Multiple language, English(Default) | |
| Colored System | PAL/NTSC/Auto-detecting | |
| Speakers | 2x5W | |
| Noise Reduction | Yes | |
| Voltage Frequency | 100V-240V AC, 50/60Hz | |
| Power Consume(Max) | ≤190W | |
| Working Temperature | 0°C~50°C | |
| Working Humidity | 10% - 90% | |
| Storage Temperature | -20°C - 60°C | |
| Storage Humidity | 10%-95% | |
