Product Details
Place of Origin: China
Brand Name: Zhongxin
Certification: CE, RoHS, FCC
Model Number: ZX-FS001
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: $1200-2500/pc
Packaging Details: Packed in carton+wooden boxes
Delivery Time: 3-18 working days
Payment Terms: T/T, Western Union
Supply Ability: 3000 Piece/Pieces per Month
Using Life: |
60,000hrs |
Name: |

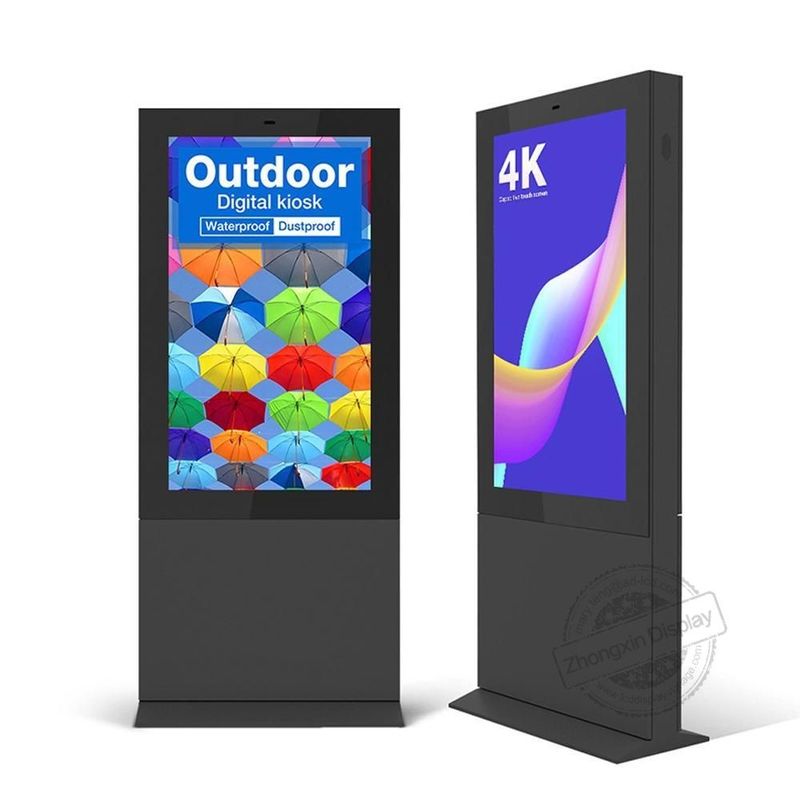

75inch Outdoor Standing Display |
Housing: |
SCPP |
Application: |
Outdoor |
Ventilation: |
Fan/Air Conditioner Inbuilt |
Real Color: |
16.7M |
Max Resolution: |
1920*1080 /3840*2160 |
Glass: |
Gmm AR Tempered Glass |
Motherboard: |
Android /I3 I5 I7 |
Waterproof: |
Built-in IP66/IP55 |
Color: |
White/grey/black/silver |
Keyword: |
Digital Signage |
Storage Temperature: |
0-50 Degrees |
Power: |
110v-240v |
Using Life: |
60,000hrs |
Name: |
75inch Outdoor Standing Display |
Housing: |
SCPP |
Application: |
Outdoor |
Ventilation: |
Fan/Air Conditioner Inbuilt |
Real Color: |
16.7M |
Max Resolution: |
1920*1080 /3840*2160 |
Glass: |
Gmm AR Tempered Glass |
Motherboard: |
Android /I3 I5 I7 |
Waterproof: |
Built-in IP66/IP55 |
Color: |
White/grey/black/silver |
Keyword: |
Digital Signage |
Storage Temperature: |
0-50 Degrees |
Power: |
110v-240v |
Outdoor LCD advertising display kiosks are equipped with a range of features designed to empower outdoor advertising campaigns and maximize audience engagement. With their weatherproof construction, high-brightness displays, interactive touchscreen technology, remote content management capabilities, customizable branding, integrated sensors, and versatile mounting options, these kiosks provide advertisers with a dynamic and impactful platform to deliver their brand message and connect with audiences in outdoor environments
Feature:
| Operation OS | Android OS | Windows OS | USB/SD Card Version |
| CPU | Quad-core Cortex-A17 | I3/I5/I7 | Mastar solution |
| Memory | DDR3 1GB up to 8GB | DDR3 8GB up to 32GB | 8GB to 32GB |
| Built-in Storage | 8GB up to 32GB FLASH/EMMC | DDR3 SSD 128G/256G/512G FLASH/EMMC | No |
| Network | Wifi,RJ45,Bluetooth | Wifi,RJ45,Bluetooth | No |
| Support Port | USB,HDMI utput,SD/TF solt,DC In,Switch | USB,HDMI/VGA Output,DC In,3.5mm jack,Switch | USB,HDMI input,SD/TF solt,Switch |
Technical Parameters:
| Panel Parameter | Panel size | 75inch outdoor using |
| Panel brand | LG, BOE, TFT lcd screen, LED backlight | |
| Resolution | 1920x1080 FHD, 3840x2160 UHD | |
| Active area (H/V) | 1649.66 x 927.936 mm | |
| Dot pitch (H/V) | 0.1432x0.4296 mm | |
| Pixel pitch (H/V) | 0.4296x0.4296 mm | |
| View angle (H/V) | 178°/178° | |
| Brightness | 2500-3500dc/m2 | |
| Contrast ratio | 4000:01:00 | |
| Display color | 16:7M (8bit) | |
| Life time | 60000 Hrs | |
| Response time | 6ms | |
| Touch screen | Types | Capacitive Multi touch 10points |
| Tempered Glass | Surface Protection | 6mm thickness Standard / 6.0mm AR Glass Optional |
| Screen Light | Light sensor | Automatic light sensor |
|
Fan Cooling System |
EBM Fan Cooling | EBM centrifugal wind, intellgent temperature-controlling system |
| EBM Fan+Heaters | -5°C heater self-heating,support continue 20-30°C,contunue +65°C Auto power off | |
| Max Power watts | 710W | |
| Working temperature | ,-20°C ~ +50°C | |
| Air-conditioner Cooling System |
Air condtioner | Industrial air-conditioner |
| Max Power watts | 1400W | |
| Working temperature | -35°C ~ +55°C | |
| Other | Temperature control | Auto adjusted |
| Frame material | 1.5mm Cold-roll steel sheets (SPCC) | |
| Frame color | Black, Grey, White, other color support | |
| Speaker | 2 x 10W | |
| Menu Language | Multi-language, English defualt | |
| Voltage input | AC 108-115V, AC 208-240V | |
| Support | Dustproof, Waterproof, Oilproof, Anti-thunder, AC contactor,Time control switch,Air switch,Intelligent temperature control system |
